通過式噴淋清洗設備系統機構組成

作者：admin來源：http://m.dijiushangdian.cn/時間：2021-07-07

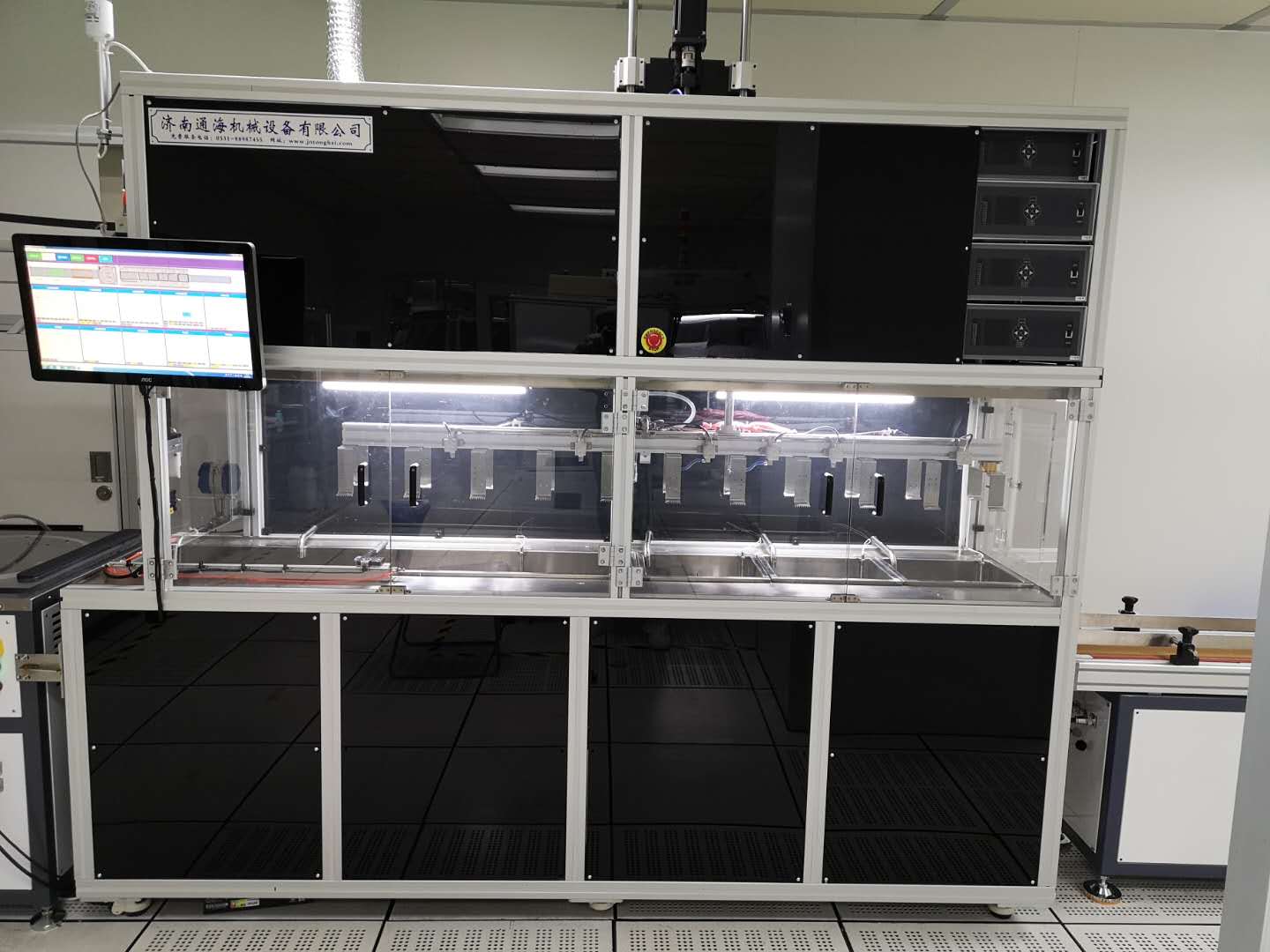

設備主要由自動輸送鏈、噴洗室、噴淋系統、除油裝置、過濾循環系統、切水系統、烘干系統及電器控制系統等組成。

The equipment is mainly composed of automatic conveying chain, spray room, spray system, degreasing device, filtering circulation system, water cutting system, drying system and electrical control system.

1、自動輸送鏈：傳送不銹鋼材質、鏈條傳動，連續通過式前進，確保清洗籃框平穩、精確運行。

1. Automatic conveyor chain: stainless steel material transmission, chain transmission, continuous through type forward, to ensure that the cleaning basket stable and accurate operation.

2、噴淋系統：噴淋清洗共兩套，一道采用藥劑噴淋清洗，二道采用噴淋漂洗，三道采用噴淋漂洗、四道采用噴淋漂洗，五道采用噴淋防銹、內腔設噴管，噴管上設不銹鋼噴嘴，上下噴淋管噴嘴間錯布置，使清洗工件全方面在清洗區域確保工件清洗時無噴淋盲區，保證工件清洗的潔凈度。

2. Spray system: there are two sets of spray cleaning, one is chemical spray cleaning, the second is spray rinsing, the third is spray rinsing, the fourth is spray rinsing, the fifth is spray rust prevention, the inner chamber is equipped with nozzle, the nozzle is equipped with stainless steel nozzle, and the nozzles of upper and lower spray pipes are staggered, so that the cleaning workpiece is in the cleaning area in all aspects, and there is no spray blind area when cleaning the workpiece, Ensure the cleanliness of workpiece cleaning.

3、除油裝置：由于前清洗工位的處理量較大，所以清洗液中的含油量較多，為了防止排水中含油量過大，此工位設有除油系統。

3. Oil removal device: because the treatment capacity of the front cleaning station is large, the oil content in the cleaning solution is large. In order to prevent excessive oil content in the drainage, this station is equipped with oil removal system.

4、過濾循環系統：循環過濾槽內清洗劑，提高清洗效果。采用袋式過濾器。

4. Filter circulation system: circulation filter tank cleaning agent, improve the cleaning effect. Bag filter is used.

5、切水系統：切水腔內單獨排放到總排水管中，在進料和出料外設有隔離段，防止水霧互竄；前后部設可拆式檢修窗，以便于設備檢修和清理。

5. Water cut system: the water cut chamber is discharged into the main drainage pipe separately, and an isolation section is set outside the feed and discharge to prevent water mist from channeling each other; Detachable maintenance windows are set at the front and rear to facilitate equipment maintenance and cleaning.

6、抽氣系統：各個噴淋與風切段都在側面開有抽氣孔連接主管，主管前端配置有除霧塔內裝拉西環，配備離心風機進行抽氣

6. Air extraction system: each spraying and air cutting section is provided with an air extraction hole on the side to connect the main pipe, and the front end of the main pipe is equipped with a demisting tower with a lassie ring inside and a centrifugal fan for air extraction

7、電器控制系統：獨立控制柜，內裝PLC可編程控制器、變頻器、接觸器等主令電器控制元件，選用進口名牌元器件組裝，性能穩定、可靠，使用壽命長，控制線路見電氣控制圖。

7. Electrical control system: independent control cabinet, equipped with PLC programmable controller, frequency converter, contactor and other master electrical control components, assembled with imported famous brand components, with stable and reliable performance and long service life. See electrical control diagram for control circuit.
